RA-B420
GET A QUOTE- Specifications
- Downloads
Parameter power supply: AC100-240V, 50/60Hz
Rated power: 600W
Light bulb model: 420W, 31 0.5WRGB three in one LEDs
The luminous flux is 7950lm, the color temperature can reach 8500K, and the output aperture is 152mm
Ballast: electronic inductor ballast
Control mode: DMX512/voice control/self-propelled/RDM
Channel: 18/22 channels
Beautiful dot matrix display, with four touch sensitive Baiqi button switches that can be reversed 180 ° for display
Color palette: One color palette, each consisting of 14 color chips+white, adjustable rotation speed, bidirectional flowing effect and rainbow effect.
Pattern plate: Fixed pattern plate, 14 pattern effects+white light (including 4 waveform effects)
Prism 1: a large angle 12-prism, Prism 2:24 honeycomb prism, Prism 3:48 honeycomb prism, 4-prism: a 6-row mirror,
Stackable and capable of bidirectional independent rotation
Bidirectional rotation, adjustable rotation speed+rainbow effect.
Focusing: Linear focusing, from near to far.
Equipped with atomization function,
0-100% mechanical dimming, supports mechanical strobe and adjustable strobe effects, supports strobe macro function, mechanical strobe is 1-12 F.P.S.
Lens group optical system, electric focusing, beam angle 0-4 °
Adopting a photoelectric reset system, the reset can be automatically retrieved in case of accidental misoperation
Horizontal 540 °, 8Bit/16Bit fine-tuning
Vertical 270 °, 8Bit/16Bit fine-tuning
It has horizontal and vertical fine automatic error correction functions.
overheat protection
IP protection level: IP20
Power off.
LCD display screen.

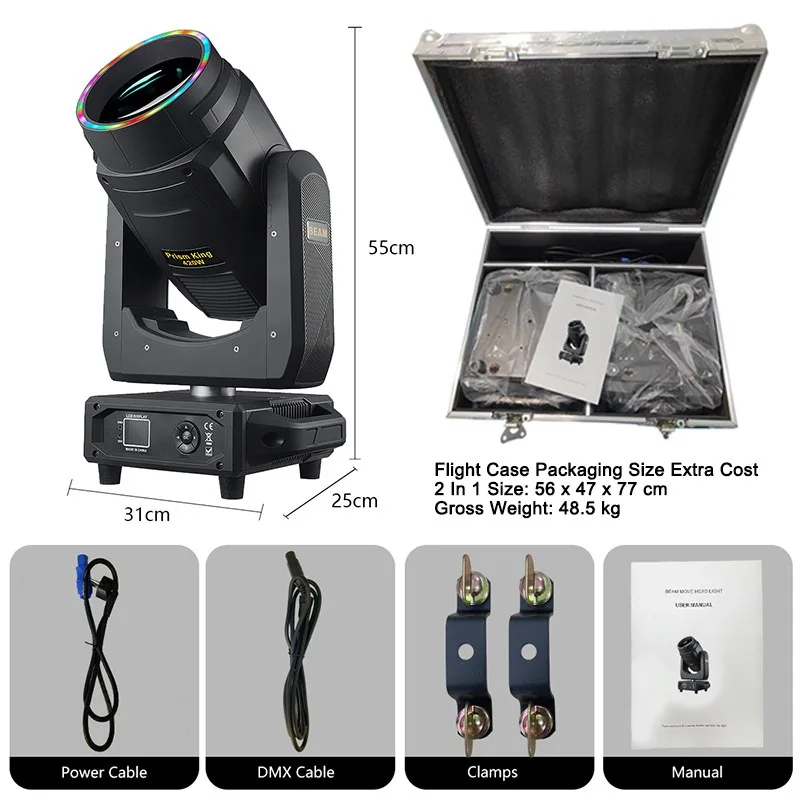

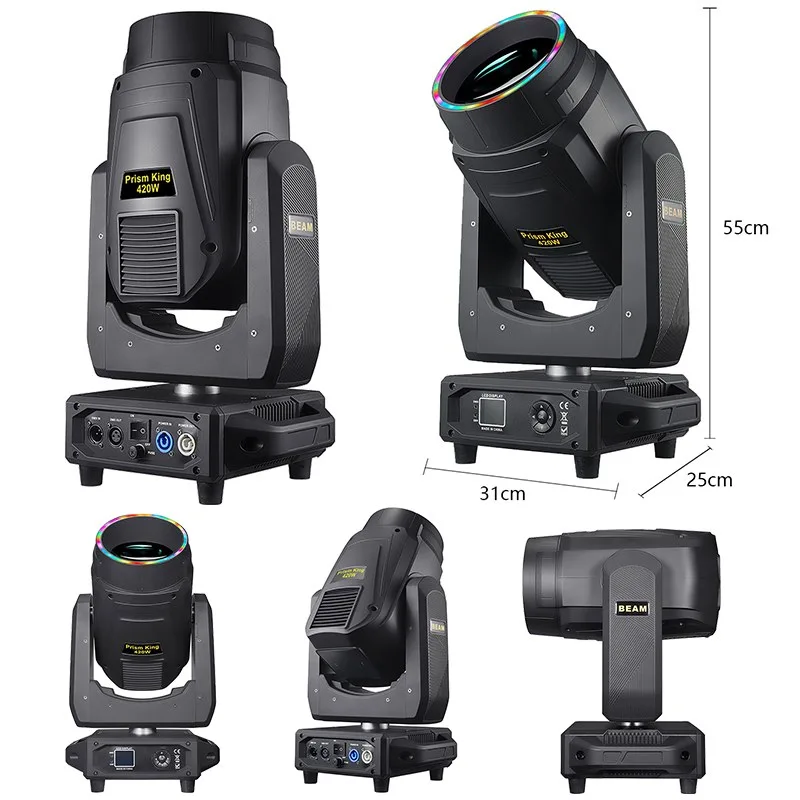

Bare lamp dimensions: 55 * 31 * 25 cm
Net weight: 13.2KG
Carton dimensions: 56*38*44cm
Gross weight: 16kg
