RA-WB420
GET A QUOTE- Description
- Downloads
Light source:Ushio 420 long-life gas discharge bulb
Color temperature: 7800K
Diameter of light outlet: 160mm
Illumination: 230000Lux@15m
Light source life: 3000 hours
Beam angle: 1.6°
Effect:
Horizontal scan: 540°
Vertical scan: 270°

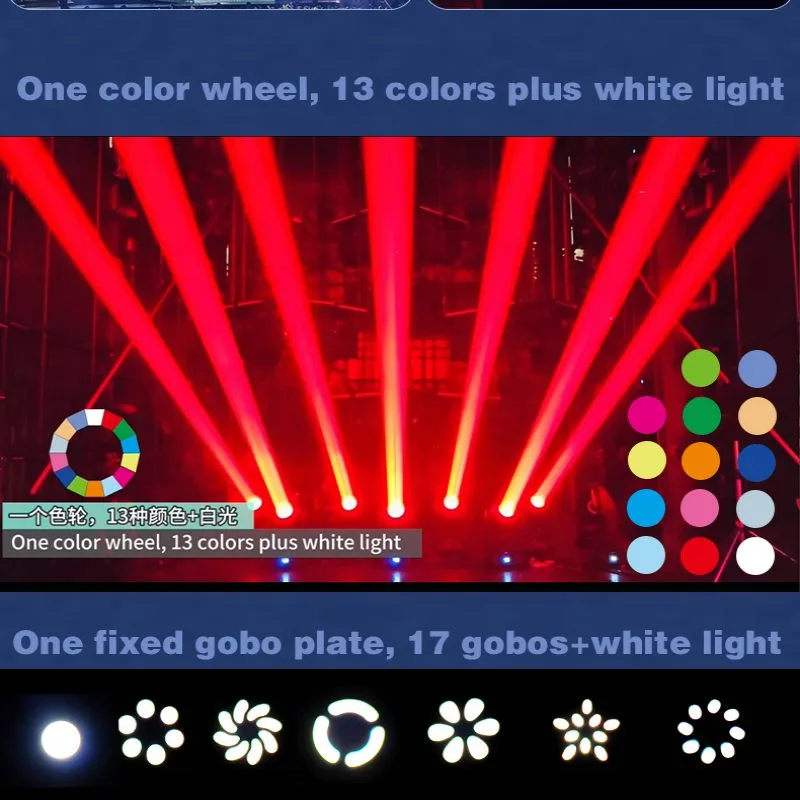

Color system: One color wheel, 13 colors plus white light

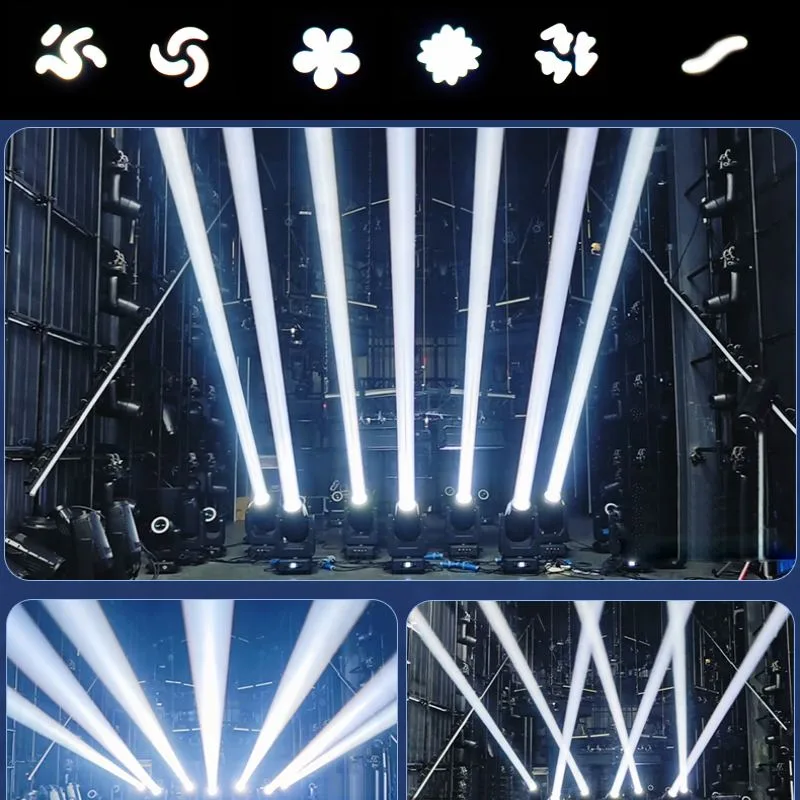

Gobo system: One fixed gobo plate, 17 gobos
Focus: Electric focus
Atomization: Atomized glass
Strobe: 0~20Hz
Dimming: 0~100% strobe dimming
Prism: One 8-prism, one honeycomb prism, can be superimposed
Control:
Control mode: DMX512 /RDM
DMX channel: 18CH
Display: Touch control interface, can remotely control the bulb switch function, display fan speed, bulb usage time
Power supply:
Input voltage and frequency: 90~240V, 50/60Hz

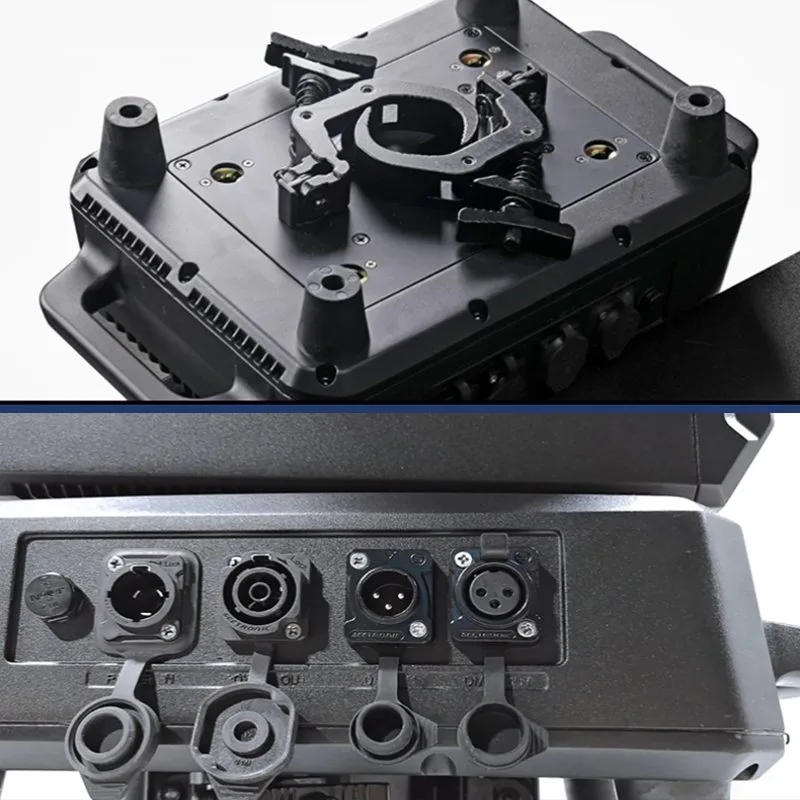

Power connection: Waterproof power connector input/output
Signal connection: 3 pin or 5 pin waterproof plug socket
Total power: 550W
Power factor: 0.95
Working environment: -20℃~45℃
Physical characteristics:

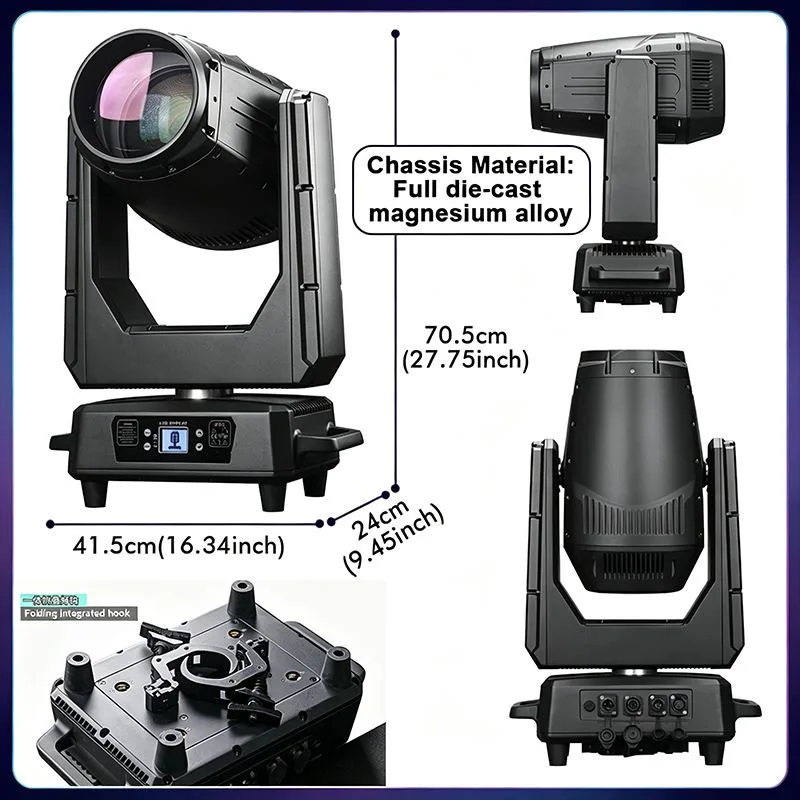

Size: 41.5*24*70.6CM
Weight: 21kg
Cooling system: air cooling + die-cast magnesium alloy + radiator
Casing: magnesium alloy casing, black outdoor paint

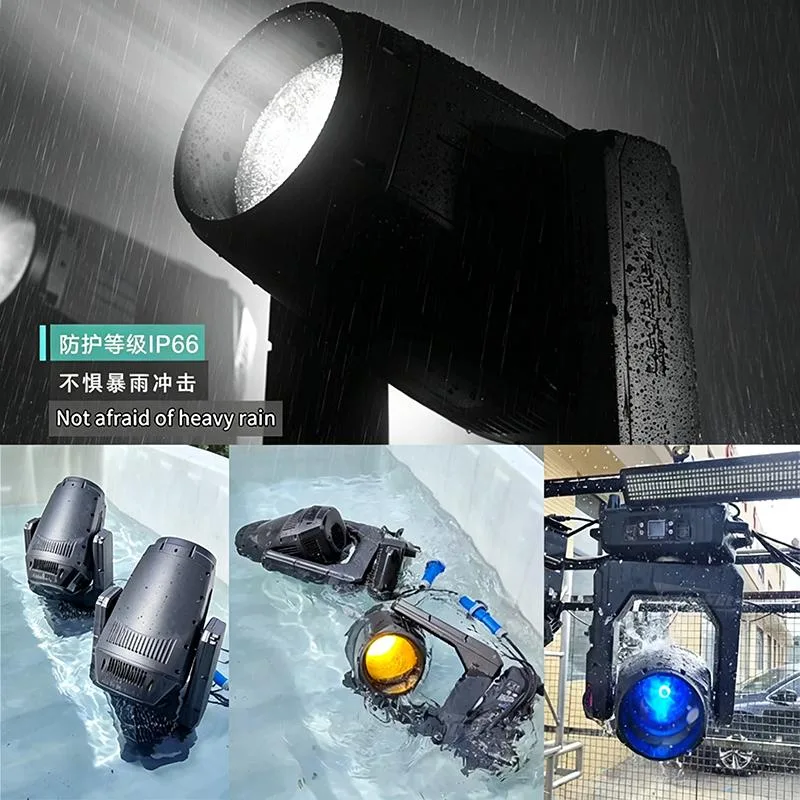

Protection level: IP66
Standard configuration: folding integrated hook, power cable 1PC, DMX cable 1PC, safety rope 1PC
IP rating: IP66
