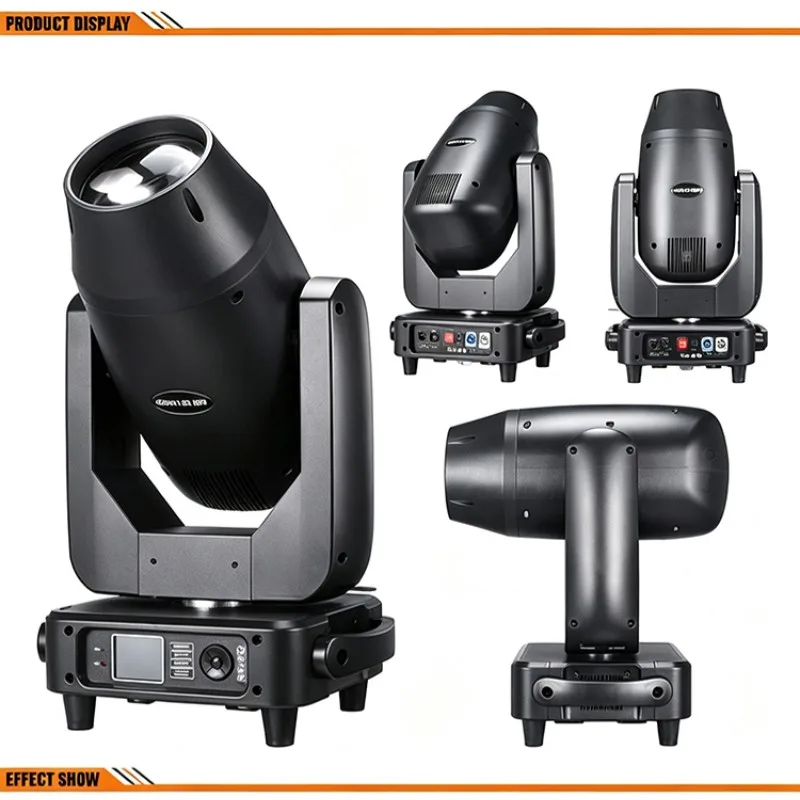

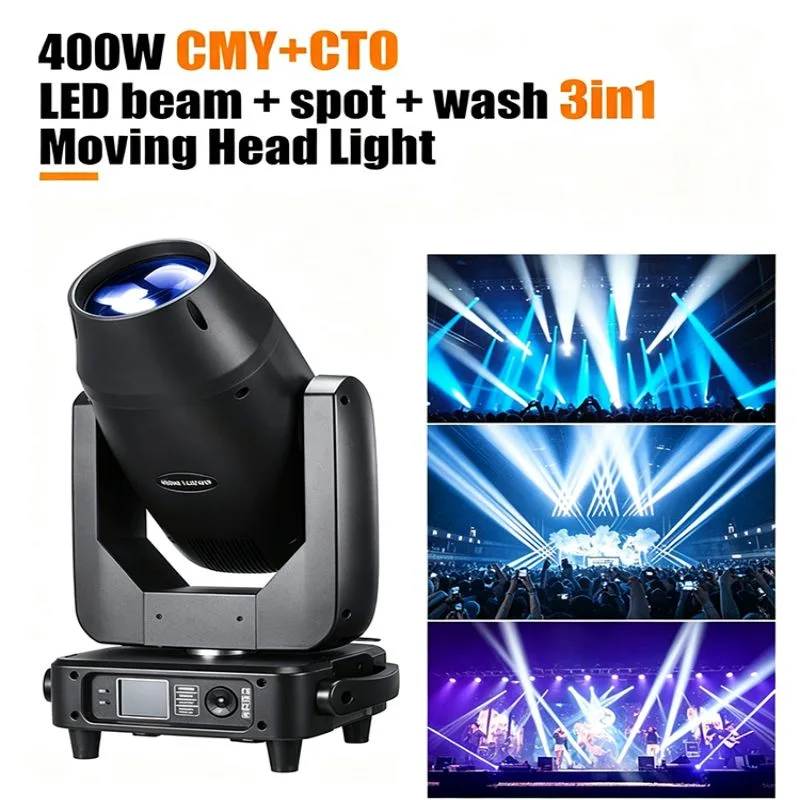

RA-B400L

Input voltage: AC110V-240V/50-60HZ

Light source specification: LED 400W

Light source lifespan: 20000 hours

Illumination: 120000 lumens at 5 meters

Rated power: 430 watts

Channel mode: 23 channels

Horizontal scanning angle: 540 degrees (16 bit precision scanning), with electronic bracket function

Vertical scanning: 270 degrees (16 bit precision scanning), with electronic bracket function

Dimming system: 0-100% linear adjustment

System: Linear adjustment range from 4 meters to 50 meters

Matte system: 1 independent matte effect, soft and natural light spot

Zoom angle: 4-35 degrees

Flashing: 0-30 times/second. The flashing speed is adjustable. High speed strobe macro function

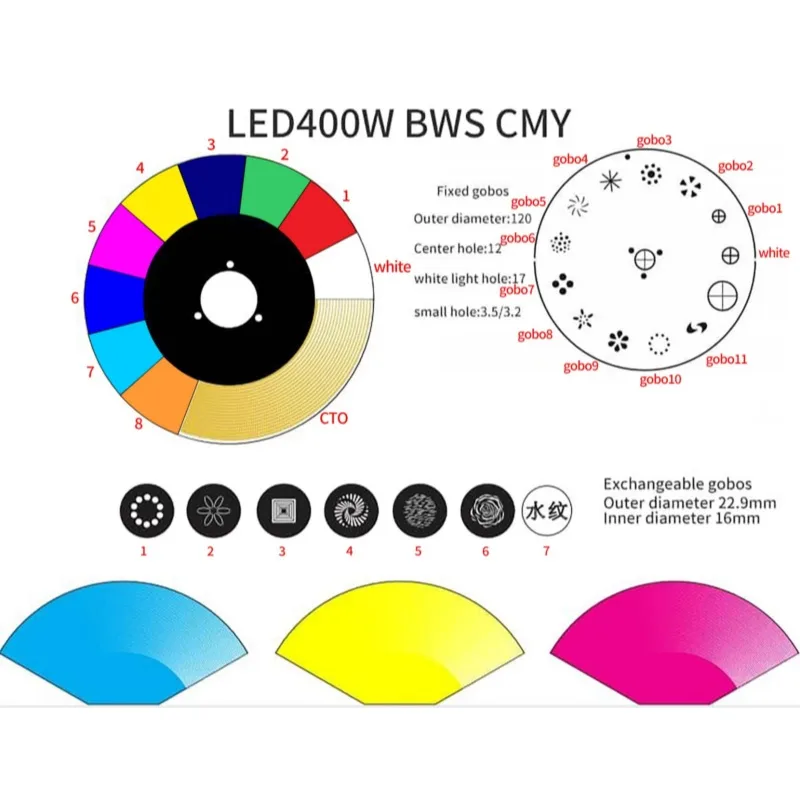

Color: 8 colors+white light. Capable of half color function

Color mixing system: Linear CMYK+CTO color mixing system.

Fixed mode: 12 fixed modes+white light

Rotating patterns: 7 types of glass patterns, each of which can be used as an independent recipe.

Prism system: Standard hexagonal prism and octahedral prism, each prism can independently rotate forward and sparsely.

Macro functions: reset function, self-propelled mode, master-slave mode

Display mode: LCD display, button+touch dual operation mode

Control signal: International standard DMX512. Equipped with RDM function, supporting online software upgrades and dialing address codes.

Method: Adopt axial flow fan cooling to enhance cooling effect

Safety device: equipped with electronic temperature control overheating protection function. When the system overheats and malfunctions, the electronic temperature control will automatically shut down and provide protection.

Appearance material: High temperature resistant plastic

Working environment: -20 ℃ to 40 ℃

Protection level: IP20

Net weight of product: 22.5 kilograms

Product size: 38 * 27 * 65 centimeters (length * width * height)
