RA-BY3740
GET A QUOTE- Description
- Specifications
- Downloads
Rated Voltage: AC 100V–240V, 50/60Hz
Input Power: 1500W
Light Source: 37 x 40W 4-in-1 Osram LEDs
Rated Lifespan: 30,000 hours
Colors: Red, Green, Blue, White, and a wide range of mixed colors
Focus: 2°–60° DMX linear zoom/focus adjustment with auto-focus function
Color Temperature Control: Built-in CTO; DMX linear control
Electronic Strobe: 0.3–25 flashes/second; selectable synchronous, asynchronous, or random strobe modes
Dimming: 0–100% linear adjustment; adjustable gamma curve and dimming frequency (1.2kHz–25kHz); smooth, stable, and flicker-free linear dimming. Utilizes stable constant-current driving and power supply, making it suitable for video recording.
Rotation: X and Y axes driven by high-speed, quiet, heavy-duty 60mm 3-phase motors; equipped with high-precision imported magnetic encoders for accurate positioning. Features automatic reset after errors and adjustable pan/tilt speeds. Rotation range: Pan 540° (16-bit precision scanning), Tilt 270° (16-bit precision scanning).
Control Modes: 6 modes available—22-channel (Simplified); 22/36/22+111/22+148/36+111/36+148 channels (Standard). Supports standard DMX512 and RDM protocols.

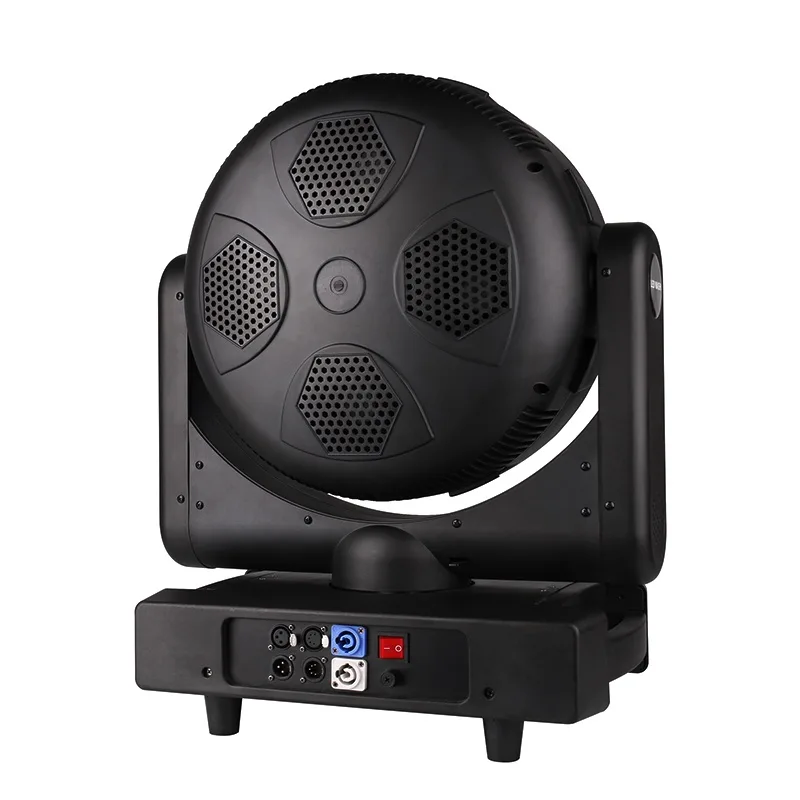

Control Interface: DMX512 (3-pin, optional 5-pin) and power input. Sleep Function: Advanced technology enables remote sleep mode; the fixture automatically enters sleep mode when the signal is disconnected, ensuring more efficient, stable, and safe operation. Display: 2.8-inch touchscreen, bilingual (Chinese/English) menu, sensor fault display, temperature display.
Cooling System: High-thermal-conductivity copper pipe heat sink; intelligent fan monitoring adjusts fan speed based on fixture temperature; built-in intelligent overheat protection and smart temperature-controlled noise reduction module.
Ingress Protection: IP22.
Packaging: Waterproof and shockproof flight case or carton.
Net Weight: 35 kg.

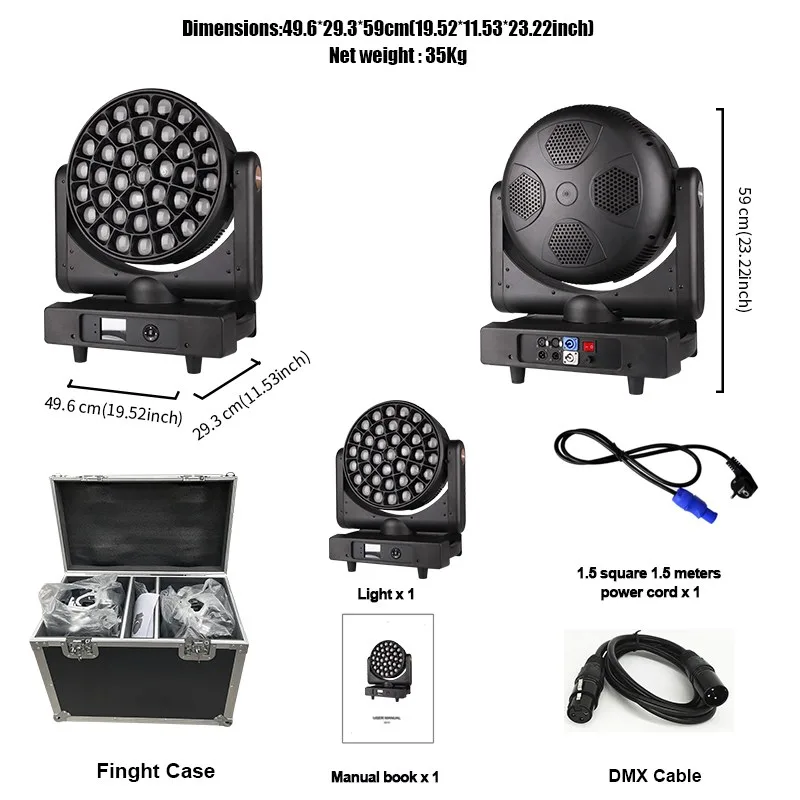

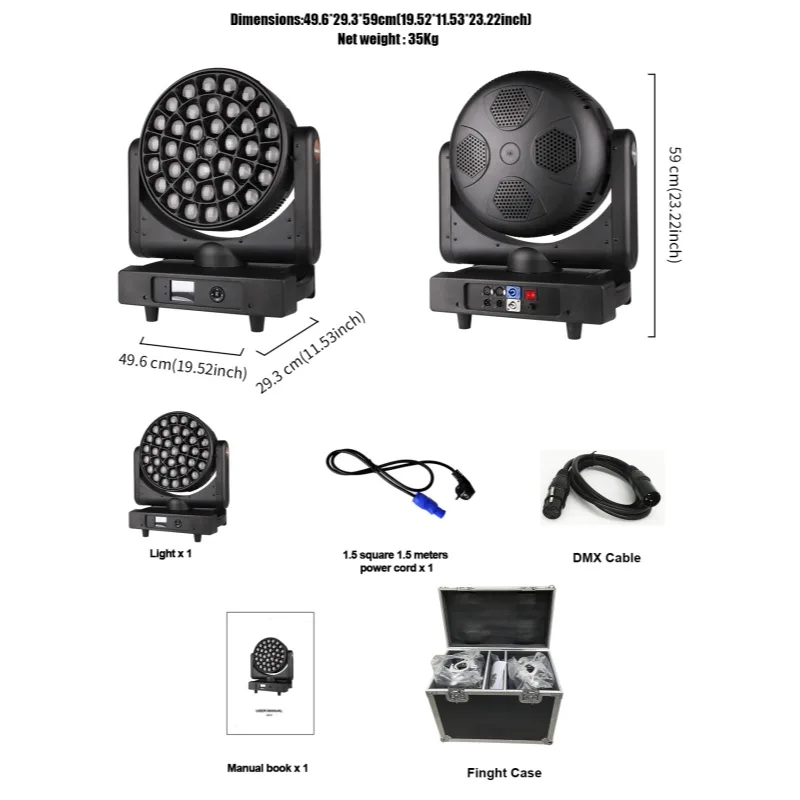

Product Dimensions:
Effect Modes: Vortex, kaleidoscope, wash, and beam; continuously rotating front lens plate; seamless lens plate design; aspheric lens structure; individual LED pixel control; strobe and “chase” (running light) effects; built-in programs.
Features:
Automatic screen rotation: The system automatically rotates the display based on gravity orientation—no manual adjustment required! The auto-rotate function can also be disabled.
